Advanced Meter Test Equipment for Precision Single-Phase Energy Meter Calibration

Наименование марки:	GENY
Номер модели:	YC1891D
МОК:	1 шт.
цена:	Подлежит обсуждению
Условия оплаты:	Л/К, Т/Т, Д/П
Способность к поставкам:	100/год

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Китай

Сертификация:

ISO, CE

Документ:

Geny product brochure 2020.pdf

Точность:

0,05

Выходное испытательное напряжение:

24 В - 288 В или по индивидуальному заказу

Тестовый ток вывод:

1 мА - 100 А или по индивидуальному заказу, Макс. 200 А

Разрешение:

Лучше, чем 0,01% от полномасштабного значения диапазона

Настройка точности:

Лучше 0,05% при окончательном диапазоне

Стабильность:

Лучше 0,005%/ч (время интеграции 150 с)

Упаковывая детали:

фанерный корпус

Поставка способности:

100/год

Выделить:

single-phase energy meter tester

precision meter calibration equipment

energy meter test equipment with warranty

Характер продукции

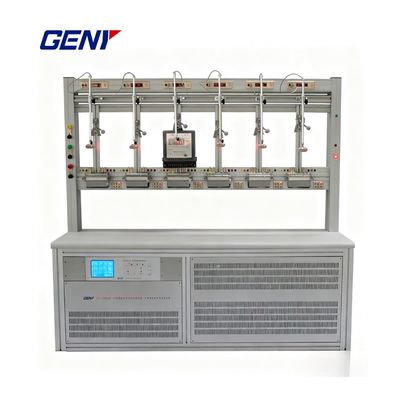

Advanced Meter Test Equipment for Precision Single-Phase Energy Meter Calibration

Our high-performance meter test equipment is engineered for precise, reliable testing of 1P2W single-phase energy meters. Designed for laboratories, utilities, and meter manufacturers, this system supports active power, reactive power, and cross-connected reactive power testing with exceptional accuracy.

Key Features

Versatile Meter Compatibility

Supports testing of 1P2W single-phase meters
Suitable for mechanical meters, electromechanical meters, and electronic meters
Capable of automatic, semi-automatic, and manual testing modes
Tests meters with different meter constants simultaneously

Advanced Testing Capabilities

Active / Reactive / Cross-Connected Reactive Power testing
Starting test and creeping test for precise performance verification
MSVT function for testing meters with I-P closed links between voltage and current circuits
Built-in current output switch for calibrating 2-element meters
Optional neutral current test and tilt impact test

High Accuracy & Stability

Power stability up to 10 ppm
Accuracy class 0.1 and 0.05
Reliable timing error test, harmonic analysis, and influence test (voltage, frequency, harmonics)

Enhanced Efficiency & Safety

Automatic rotor mark positioning for mechanical meter discs
Scanning head swing mechanism for simplified operation
Protection against overload, short-circuit voltage, and open current circuits
Aluminum-alloy construction: lightweight, robust, and corrosion-resistant

Flexible Software & Connectivity

User-friendly testing software compatible with Windows 2000 / XP / 7 / 8 / 10
Includes modules for error testing, harmonic testing, demand testing, and influence testing
RS232 and Ethernet communication ports available at each meter position
